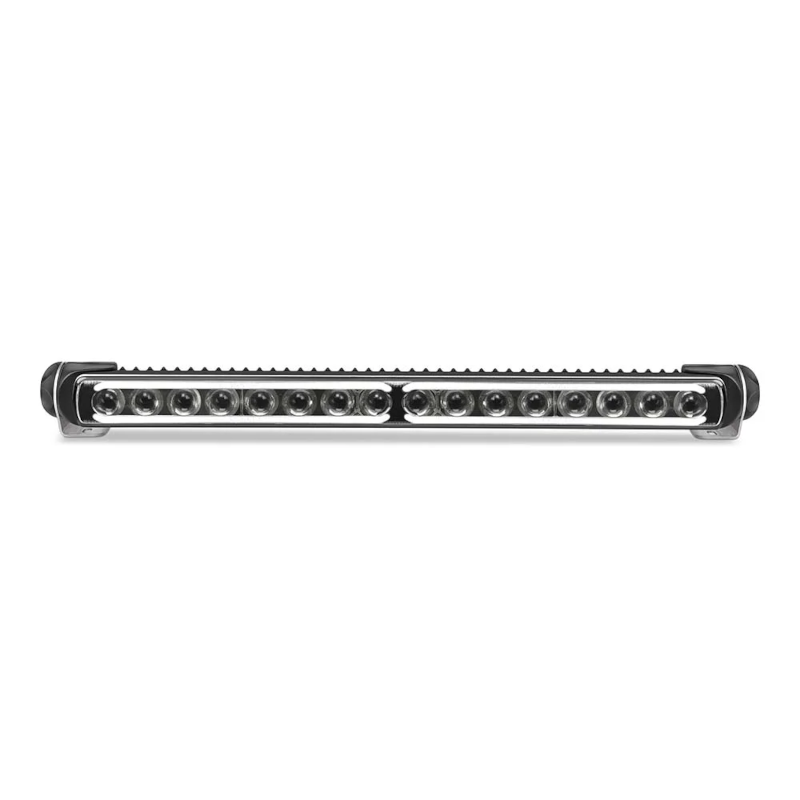

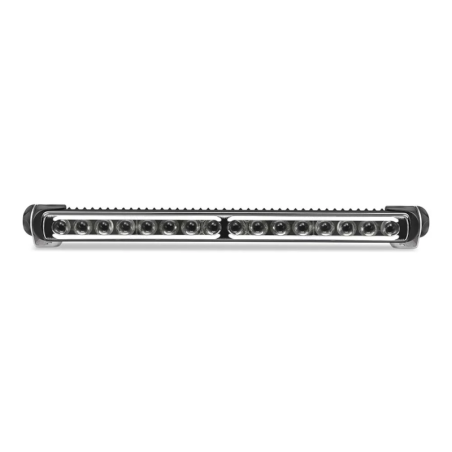

Hella Sea Hawk 470 Combi - Spread and Spot - Black Housing White Edge light
€502.15
(tax incl.)
€415.00 tax excl.
Part-number:
Hellamarine 2LT 958 140-501
- Work ligth Seahawk-470 LED 1.700 lm
- Dayligth white 5.500K
- Black ceramic polymer housing
- IP67 Completely sealed
- Powersupply: 9-33V DC Multivolt
Logistical information:
- Weight: 0.50kg
Specifications of Hella 2LT 958 140-501:
Light characteristics:
| Light source: | LED |
| Colour temperature: | 5500 Kelvin |
| Light Output: | 1700 Lumen |
Enclosure:
| Housing colour: | Black |
| Housing material: | ‘Non metal’ thermally conductive |
| Lens: | Heavy duty Grilamid* |
| Bracket material: | 316 Stainless steel |
Sizes and mounting:
| Height with single bracket (mm / inch): | 57mm / 2.24" |
| Height with double bracket (mm / inch): | 122mm / 4.80" |
| Width (mm / inch): | 176mm / 6.93" |
| Width including bracket (mm / inch): | N.A. |
| Depth with single bracket (mm / inch): | 67mm / 2.64" |
| Depth with double bracket (mm / inch): | 73mm / 3.03" |
| Weight: | 1kg Including bracket and cable |
Power Supply:
| Power consumption Main beam: | 36W 12V - 2.7A 24V - 1.4A |
| Power consumption Edge: | 4W 12V - 300mA 24V - 150mAA |
| Power supply: | Multivolt™ 9-33V DC |
| Connection: | Pre-wired |
| Cable length: | 2.5m of tinned marine cable |
| Degree of Protection: | IP 6K7 IP6K9K (Completely sealed) |
| Approvals: | CE, ECE R10, RCM, UKCA |
2LT 958 140-501
Data sheet
- Serie
- Hella Sea Hawk-470 LED
- Operating voltage
- Multivolt 9-33 Volt DC
- Part status - Delivery time
- Orderable
- Packaging
- Hellamarine Retail
- Mounting
- Bracket 316 Stainless Steel
- Light source
- LED
- Mounting position
- Horizontal
- Housing colour
- Black
- IP Protection class
- IP67 Completely sealed
- Housing Material
- Thermally conductive polymer
Specific References
- MPN
- 2LT 958 140-501
Hellamarine 2LT 958 140-501
- Work ligth Seahawk-470 LED 1.700 lm
- Dayligth white 5.500K
- Black ceramic polymer housing
- IP67 Completely sealed
- Powersupply: 9-33V DC Multivolt
