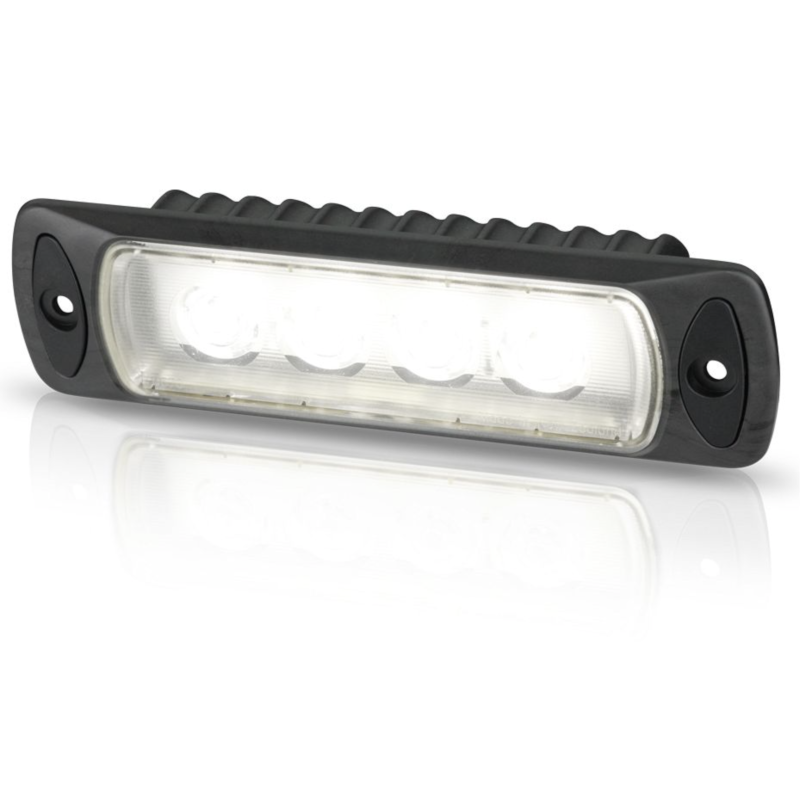

Hella Sea Hawk R LED Worklight - Spot beam - Dayligth white - 9-33V - 550LM - 7W - Black Recess Mounted
search
  • Hella Sea Hawk R LED Worklight - Spot beam - Dayligth white - 9-33V - 550LM - 7W - Black Recess Mounted
  • Hella Sea Hawk R LED Worklight - Spot beam - Dayligth white - 9-33V - 550LM - 7W - Black Recess Mounted
  • Hella Sea Hawk R LED Worklight - Spot beam - Dayligth white - 9-33V - 550LM - 7W - Black Recess Mounted

Hella Sea Hawk R LED Worklight - Spot beam - Dayligth white - 9-33V - 550LM - 7W - Black Recess Mounted

€145.44 (tax incl.)

€120.20 tax excl.

Part-number:

Hellamarine 2LT 980 577-201

  • Work ligth Seahawk R LED 550 lm
  • Spot beam - Dayligth white 5.000K
  • Black ceramic polymer housing
  • IP67 Completely sealed - SS316 Bracket
  • Powersupply: 9-33V DC Multivolt - 7 Watt
  • Recessed mount - (WxHxD) 176x50x8mm
Logistical information:
OrderableClick here for detailed information.
  • Weight: 0.50kg
Quantity

Light characteristics:

Light source: LED
Colour temperature: 5000 Kelvin
Light Output: 550 Lumen
Power: 7 Watt (<0.6A@12V / <0.3A@24V)
Voltage: Multivolt™ 9-33V DC

Enclosure:

Housing colour: Black
Housing material: Black ‘Non metal’ thermally conductive polymer
Lens: Heavy duty Grilamid lens

Sizes and mounting:

Mounting: Recessed
Mounting orientation: Horizontal
Height (mm / inch): 50mm / 1.97"
Height including bracket (mm / inch): N.A.
Width (mm / inch): 176mm / 6.93"
Width including bracket (mm / inch): N.A.
Depth (mm / inch): 8mm / 0.31"
Depth including bracket (mm / inch): N.A.
Monting height (mm / inch): 40mm / 1.57"
Mounting Width (mm / inch): 132mm / 5.19"
Mounting depth (mm / inch): 35mm / 1.38"
Weight: 187g Including cable

Power Supply:

Power supply: Multivolt™ 9-33V DC
Connection: Pre-wired
Cable length: 0.5m of twin core marine cable

Degree of Protection: IP67 - Completely sealed
Approvals: CE, RCM
2LT 980 577-201

Data sheet

Serie
Hella Sea Hawk R LED
Operating voltage
Multivolt 9-33 Volt DC
Part status - Delivery time
Orderable
Packaging
Hellamarine Retail
Mounting
Recessed
Light source
LED
Mounting position
Horizontal and Vertical
Housing colour
Black
Light colours
Neutral white 5.000K
Height
50 mm - 1.97 Inch
IP Protection class
IP67 Completely sealed
Warranty
5 Jaar Hella fit and forget
Light beam
Narrow beam
Power consumption
7 Watt
12 Volt 0.58 Ampere - 24 Volt 0.29 Ampere
Certification
RFCommSafe - CE
LED Light output
550 Lumen
Housing Material
Thermally conductive polymer
Width
176 mm - 6.93 Inch
High - Low Intensity Mode
No

Specific References

MPN
2LT 980 577-201
