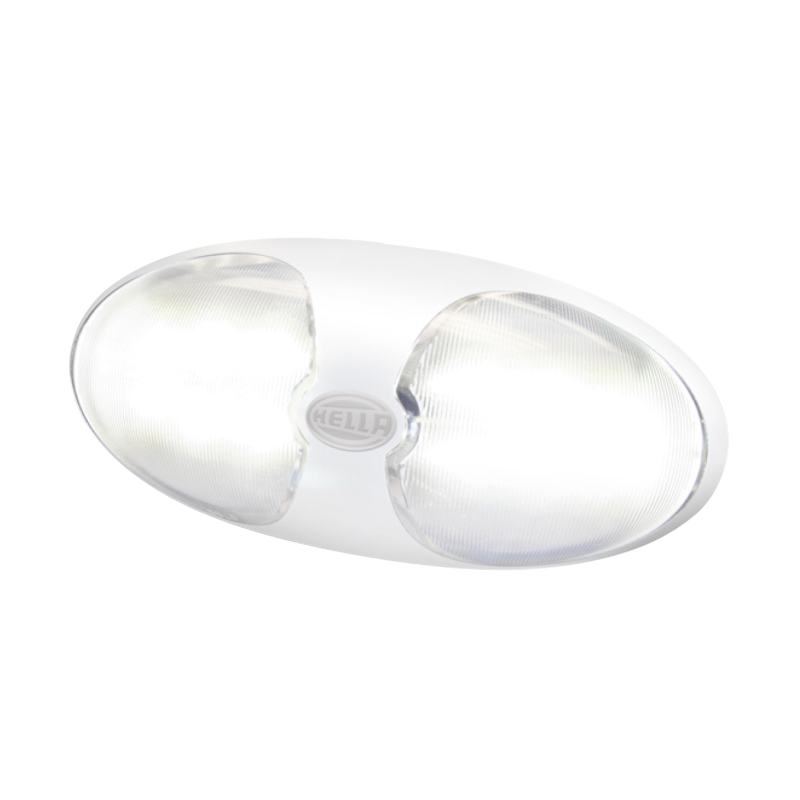

Hella DuraLED 12 LED White - 12/24V - Screw Mount - Cool White
search
  • Hella DuraLED 12 LED White - 12/24V - Screw Mount - Cool White
  • Hella DuraLED 12 LED White - 12/24V - Screw Mount - Cool White
  • Hella DuraLED 12 LED White - 12/24V - Screw Mount - Cool White

Hella DuraLED 12 LED White - 12/24V - Screw Mount - Cool White

€151.25 (tax incl.)

€125.00 tax excl.

Part-number:

Hellamarine 2JA 959 700-101

  • White shroud - IP67 Completely Sealed
  • Cool White 5.000K
  • Dimentions (LxBxH) 140mm x 65mm x 32mm
  • MultiVolt 12 / 24 Volt DC - < 2,5 Watt
  • Mounting 2 SS 316 Screws
  • Hellamarine Retail
  • Weight: 0.45kg
Quantity

The DuraLED 12 lamps are surface mounted and feature a unique installation system where the fastening load is taken up by a heavy-duty nylon bush to eliminate possible stress on the lamp housing. Purposely designed for engine rooms, storage lockers, lazarettes and applications where reliability must not be compromised.

Low EMC noise ensures that these lamps won't interfere with radio communications. Completely sealed to ISO 8846 and have protection against ignition of surrounding flammable gases. This means they can be used in high risk areas, interior and exterior, wet or dry locations. These lamps are impervious to the marine environment and can be fitted throughout the vessel, maintaining a consistent appearance.

Hellamarine2
2JA 959 700-101

Data sheet

Category
Hella Surface mount
Serie
DuraLED 12
Application
Inside and outside
Operating voltage
9-33 Volt DC Multivolt
Packaging
Hellamarine Retail
Mounting
Included stainless steel screws
Light colours
Cool-White 5.000K
CE Certification
Yes
IP Protection class
IP67 Completely sealed
Feature: Lens material
UV Resistant Acryl
Warranty
5 Jaar Hella fit and forget
Light beam
120 Degrees
Power consumption
2.5 Watt
Housing Material
Heavy duty nylon
Connection cable
500mm tinned marine cable
Certification
CE
ISO 8846 (Ignition protection)
Voltage protection
Reverse polarity protected to -700 volts
Spike protected to +500 volts

Specific References

MPN
2JA 959 700-101
